ACS180-04S-038A-4 is a three-phase 400 V drive offering 18.5 kW nominal power in an R4 frame. Its 38.0 A nominal rating and 260 mm width make the cabinet impact of greater capacity clear. Specify plant conditions to review fit and duty together.
Selection for your application
Allow service clearance and airflow in addition to the 260 mm device width.
Technical specifications
| Model | ACS180-04S-038A-4 |
|---|---|
| ABB ordering code | 3AXD50000814497 |
| Nominal supply | 400 V AC, 3 phase |
| Nominal motor power Pn | 18.5 kW |
| Nominal output current In | 38.0 A |
| Frame | R4 |
| Ingress protection | IP20 |
| Width x height x depth | 260 mm x 240 mm x 178.6 mm |
Pn/In are nominal ratings. Assess heavy-duty capacity and ambient conditions separately.
Can an existing cabinet always remain when power increases?
Heat, dimensions, protection and connection space can change, so the cabinet needs reassessment.
Request a quotation
Request 038A-4 for the planned R4 cabinet arrangement.
Confirm price, stock and lead time for the selected model.

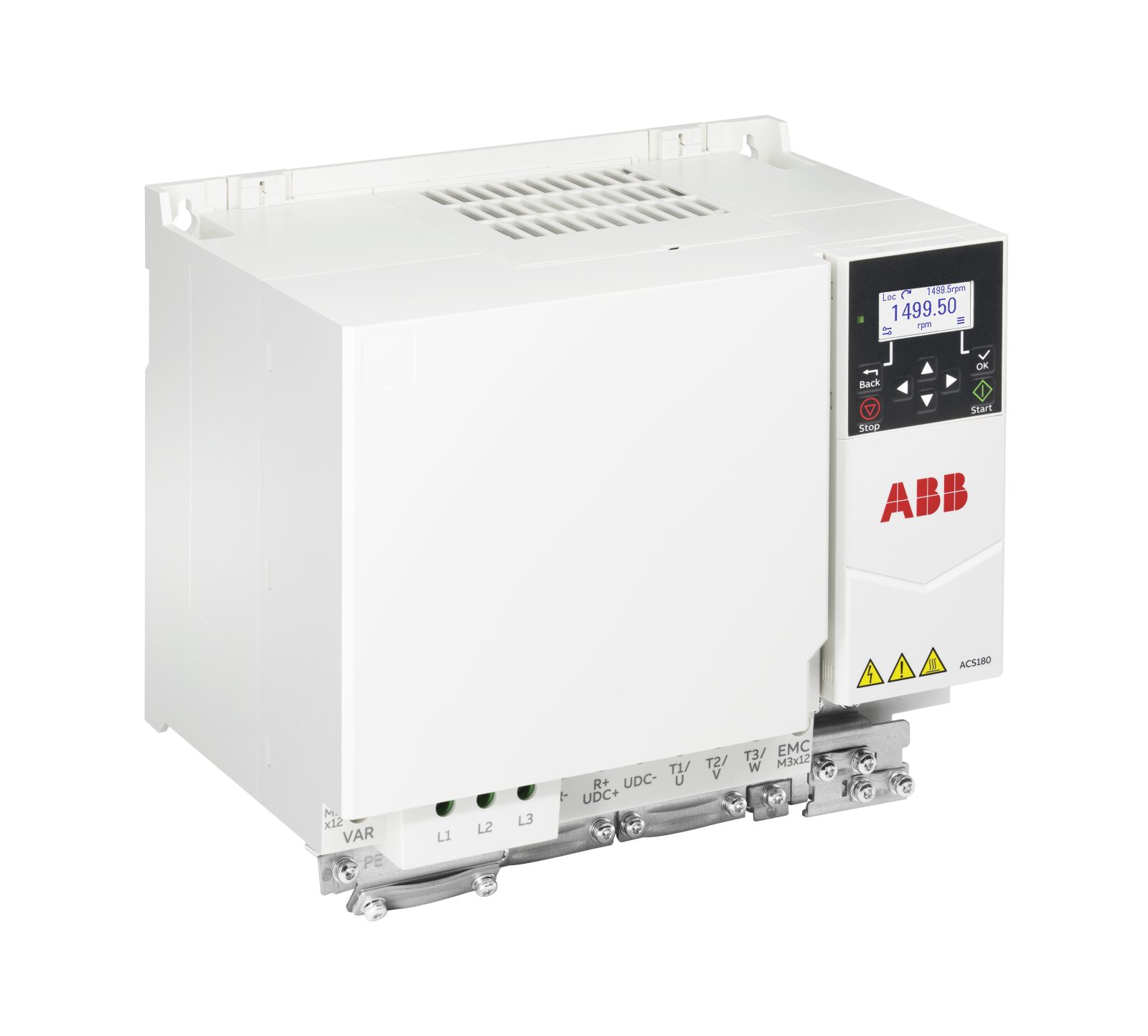

Official manufacturer family/representative visual; not an exact dimensional or nameplate photograph.
