ACS180-04S-05A6-4 offers 2.2 kW and 5.6 A nominal ratings for three-phase 400 V drives. Its 70 mm-wide R1 frame helps compare increased power against cabinet space. Defining command and communication needs alongside motor data makes retrofit procurement clearer.
Selection for your application
Attach the existing speed-command arrangement and motor nameplate.
Technical specifications
| Model | ACS180-04S-05A6-4 |
|---|---|
| ABB ordering code | 3AXD50000716661 |
| Nominal supply | 400 V AC, 3 phase |
| Nominal motor power Pn | 2.2 kW |
| Nominal output current In | 5.6 A |
| Frame | R1 |
| Ingress protection | IP20 |
| Width x height x depth | 70 mm x 220 mm x 143 mm |
Pn/In are nominal ratings. Assess heavy-duty capacity and ambient conditions separately.
Does equal motor power establish a direct replacement?
Voltage, current, duty, connections and functions must all be checked before establishing equivalence.
Request a quotation
Request 05A6-4 compatibility review and pricing for your controls.
Confirm price, stock and lead time for the selected model.

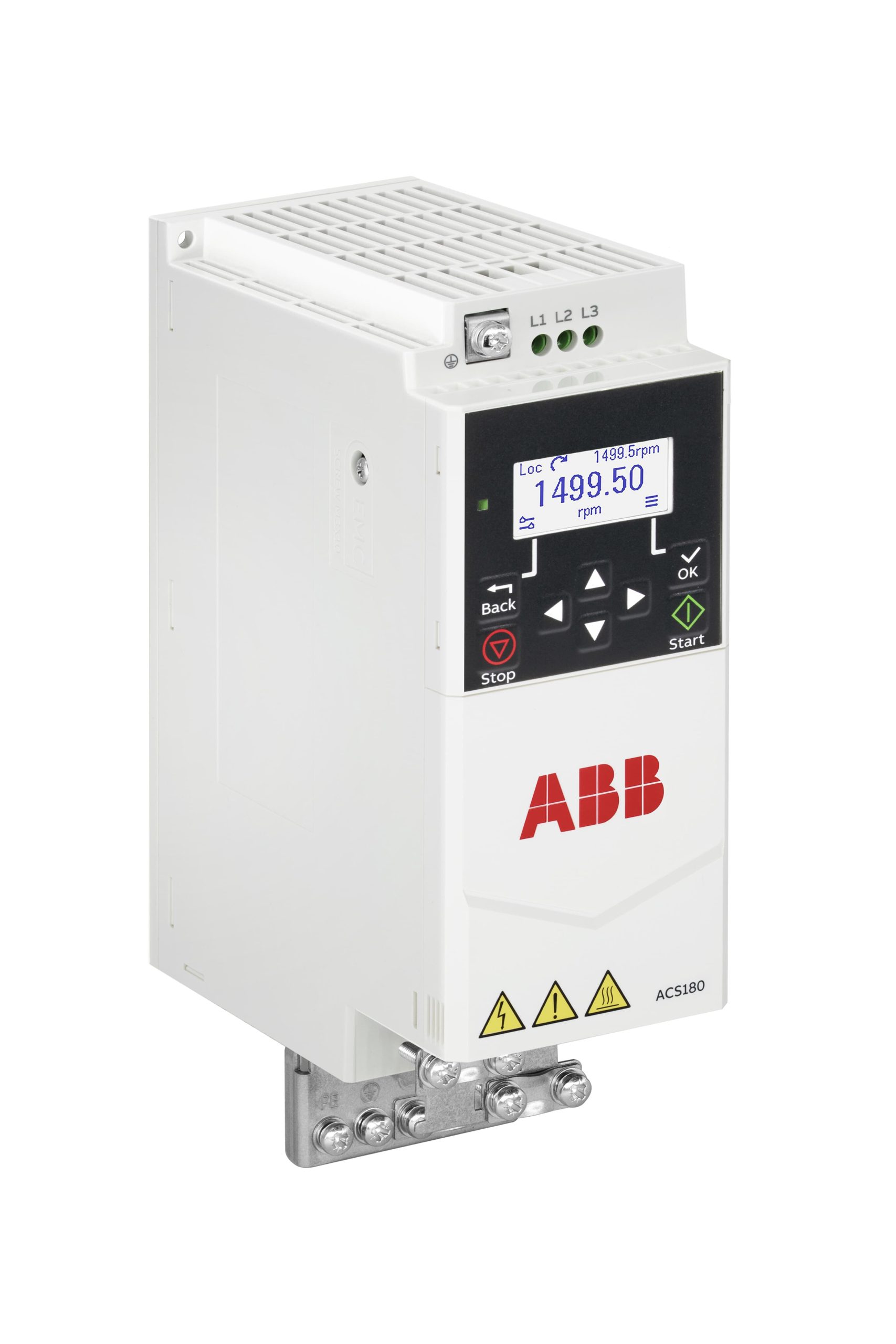

Official manufacturer family/representative visual; not an exact dimensional or nameplate photograph.
