For a large drive, ACS580-01-206A-4 establishes initial selection values of 110 kW nominal power and 206 A current. This 400 V ACS580 uses the R7 frame. Including supply-quality information and the existing compensation arrangement alongside the motor plate supports the site assessment.
Selection for your application
Provide electrical installation details to the authorised project team for review.
Technical specifications
| Model | ACS580-01-206A-4 |
|---|---|
| ABB ordering code | 3AUA0000080506 |
| Nominal supply | 400 V AC, 3 phase |
| Nominal motor power Pn | 110 kW |
| Nominal output current In | 206 A |
| Frame | R7 |
| Ingress protection | IP21 |
| Width x height x depth | 284 mm x 880 mm x 370 mm |
Pn/In are nominal ratings. Assess heavy-duty capacity and ambient conditions separately.
Does this product alone guarantee plant power quality?
No such guarantee follows; the complete load mix and supply conditions require separate analysis.
Request a quotation
Request this high-power drive with the plant single-line diagram.
Confirm price, stock and lead time for the selected model.

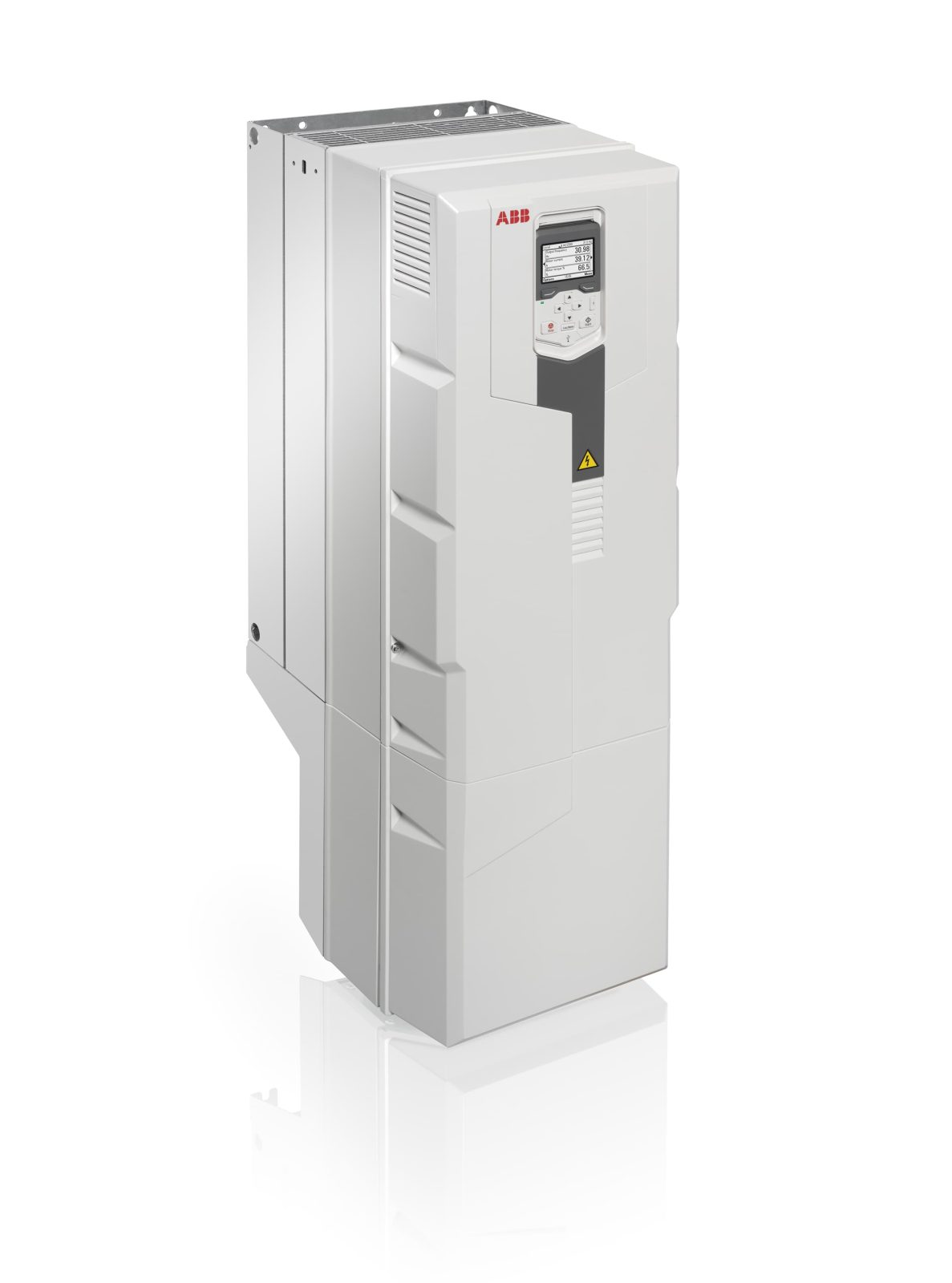

Official manufacturer family/representative visual; not an exact dimensional or nameplate photograph.
