Capacitive level sensors | BCS01CY

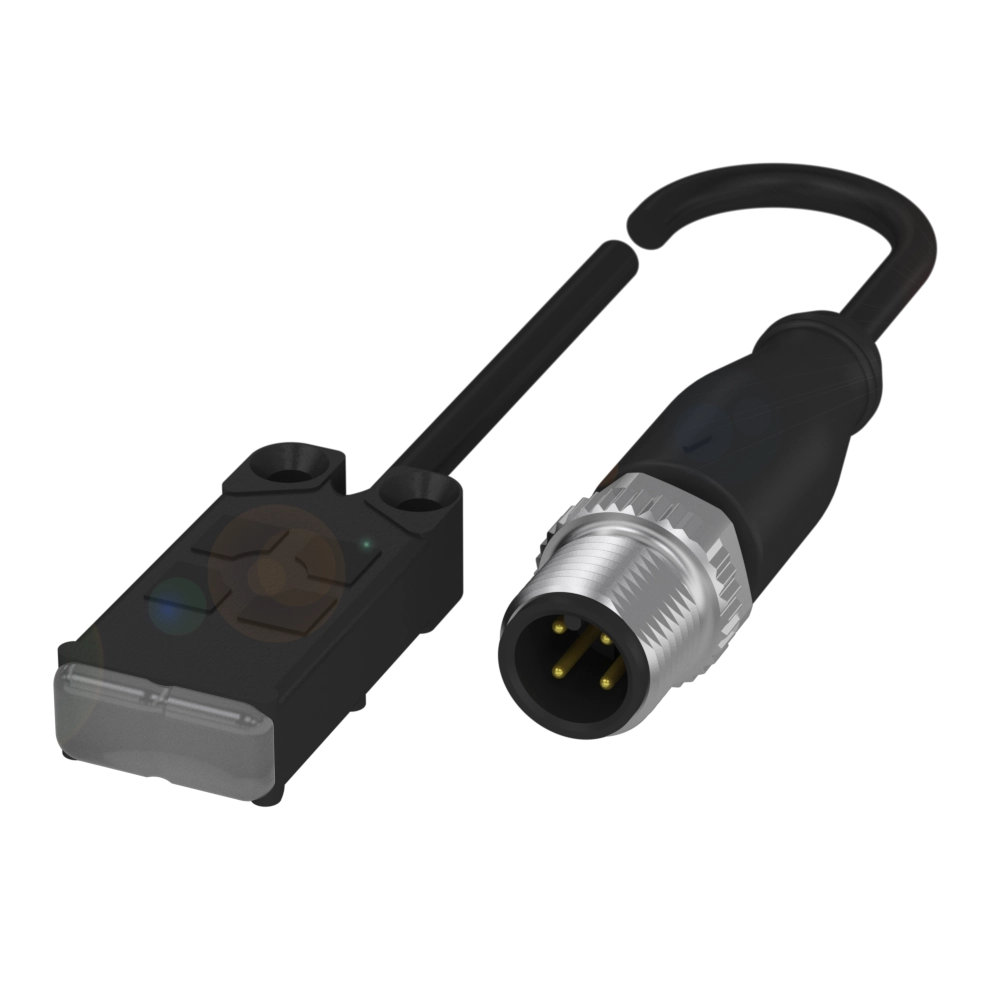

Balluff BCS R08RRE-PICFHC-BP00,3-GS04 (BCS01CY): capacitive level sensors. Switching output: Push-Pull/IO-Link NO(PNP)/NC(NPN) Programmable; Dimension: 34 x 16 x 8 mm; Series: R08.
Technical specifications
| Part number | BCS01CY |
|---|---|
| Full model | BCS R08RRE-PICFHC-BP00,3-GS04 |
| Series | R08 |
| Dimension | 34 x 16 x 8 mm |
| Installation | flush with container outer wall |
| Connection | Cable with connector, 0.3 m, PUR |
| Switching output | Push-Pull/IO-Link NO(PNP)/NC(NPN) Programmable |
| Switching frequency | 10 Hz |
| Interface | IO-Link-Device 1.1.3 |
| Sensitivity | teachable depending on media |
| Function | Smart Level 50 |
| Additional features | Electrically conductive media Foam and residue compensation |
| Material sensing surface | PP |
| Ambient temperature | -25…80 °C |
| Operating voltage Ub | 18…30 VDC |
| Approval/Conformity | CE cULus WEEE UKCA |
| IP rating | IP67 IP65 |
Selection and application
Detection, measurement or communication function specified by the manufacturer. Compare the exact model, electrical interface, mounting and operating environment. Confirm suitability in the actual application.
Documentation
The package includes a bilingual Automation summary and a link to the original Balluff technical source. Numbered notes and operating limits refer to the original source. The manufacturer illustration may differ from the delivered variant.
Quotation
Request a quotation using BCS R08RRE-PICFHC-BP00,3-GS04, part number BCS01CY and quantity. Price, stock and delivery time require confirmation.
