Capacitive level sensors | BCS015K

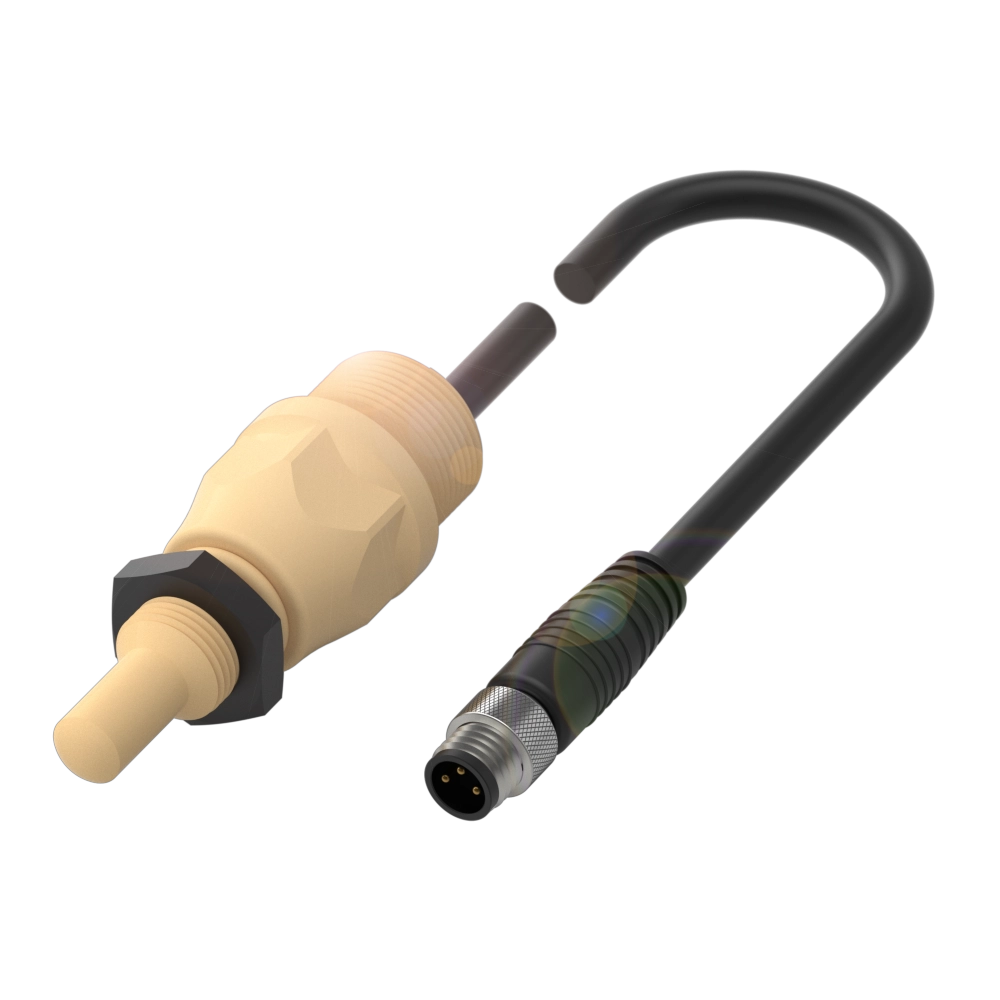

Balluff BCS S44KK01-GPCFNG-EP00,05-GS49 (BCS015K): capacitive level sensors. Switching output: PNP/NPN NO/NC codable; Housing material: PEEK; Dimension: Ø 12 x 62.5 mm.
Technical specifications
| Part number | BCS015K |
|---|---|
| Full model | BCS S44KK01-GPCFNG-EP00,05-GS49 |
| Series | S44 |
| Dimension | Ø 12 x 62.5 mm |
| Installation | non-flush |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.05 m, PUR |
| Switching output | PNP/NPN NO/NC codable |
| Switching frequency | 10 Hz |
| Sensitivity | media-dependent, adjustable |
| Function | Smart Level 15 |
| Additional features | Electrically conductive media Foam and residue compensation |
| Housing material | PEEK |
| Material sensing surface | PEEK |
| Ambient temperature | -5…105 °C, UL approval valid up to 85 °C |
| Operating voltage Ub | 10…30 VDC |
| Approval/Conformity | CE UKCA WEEE cULus |
| IP rating | IP67 |
Selection and application
Detection, measurement or communication function specified by the manufacturer. Compare the exact model, electrical interface, mounting and operating environment. Confirm suitability in the actual application.
Documentation
The package includes a bilingual Automation summary and a link to the original Balluff technical source. Numbered notes and operating limits refer to the original source. The manufacturer illustration may differ from the delivered variant.
Quotation
Request a quotation using BCS S44KK01-GPCFNG-EP00,05-GS49, part number BCS015K and quantity. Price, stock and delivery time require confirmation.
