Inductive factor 1 sensors | BES02YT

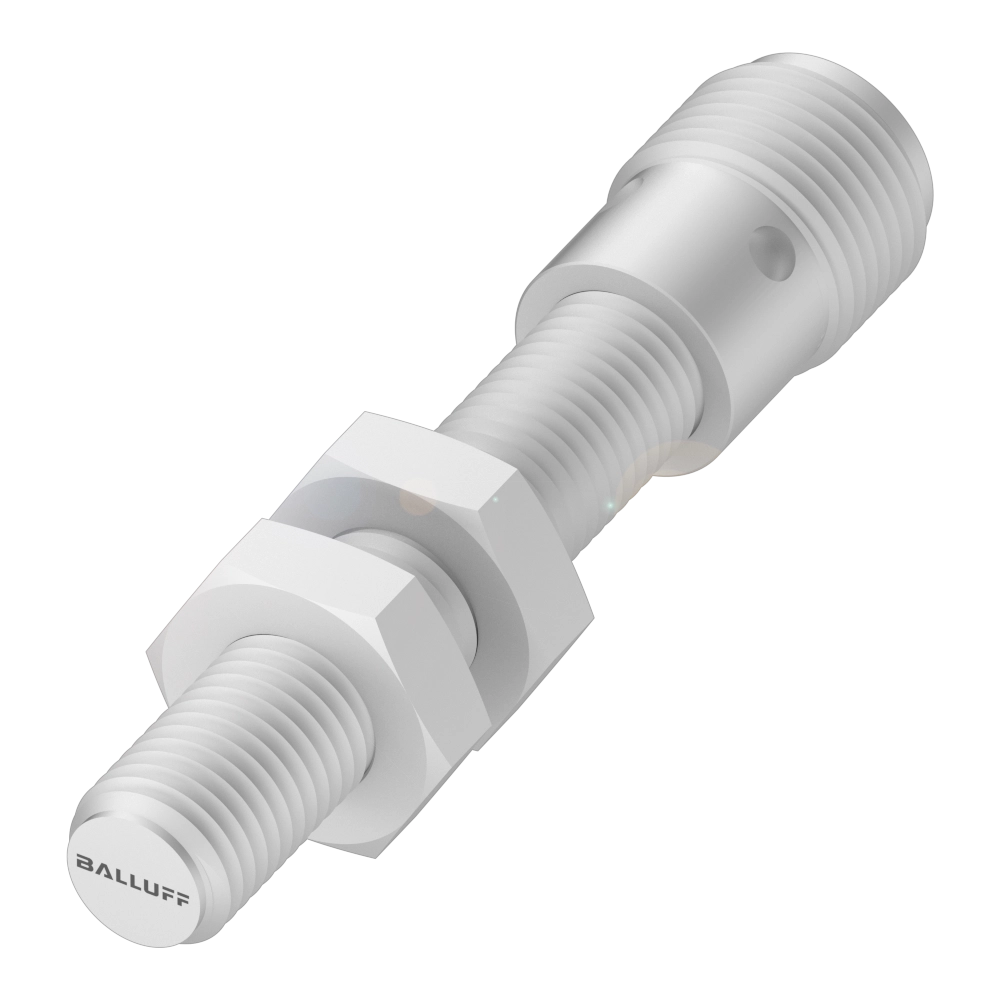

Balluff BES M08EG1-PSC15A-S04G-W (BES02YT): inductive factor 1 sensors. Switching output: PNP normally open (NO); Housing material: 1.4301 stainless steel, PTFE coated; Dimension: Ø 8 x 57 mm.
Technical specifications
| Part number | BES02YT |
|---|---|
| Full model | BES M08EG1-PSC15A-S04G-W |
| Series | BES |
| Dimension | Ø 8 x 57 mm |
| Style Housing | M8x1 |
| Installation | for flush mounting |
| Range | 1.5 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 2000 Hz |
| Housing material | 1.4301 stainless steel, PTFE coated |
| Material sensing surface | PBT/PTFE |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10…30 VDC |
| Ambient temperature | -25…70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) |
| IP rating | IP67 |
| Approval/Conformity | CE WEEE |
| Additional features | Factor 1 Weld immune |
Selection and application
Detection, measurement or communication function specified by the manufacturer. Compare the exact model, electrical interface, mounting and operating environment. Confirm suitability in the actual application.
Documentation
The package includes a bilingual Automation summary and a link to the original Balluff technical source. Numbered notes and operating limits refer to the original source. The manufacturer illustration may differ from the delivered variant.
Quotation
Request a quotation using BES M08EG1-PSC15A-S04G-W, part number BES02YT and quantity. Price, stock and delivery time require confirmation.
