HF RFID readers (13.56 MHz) | BIS0197

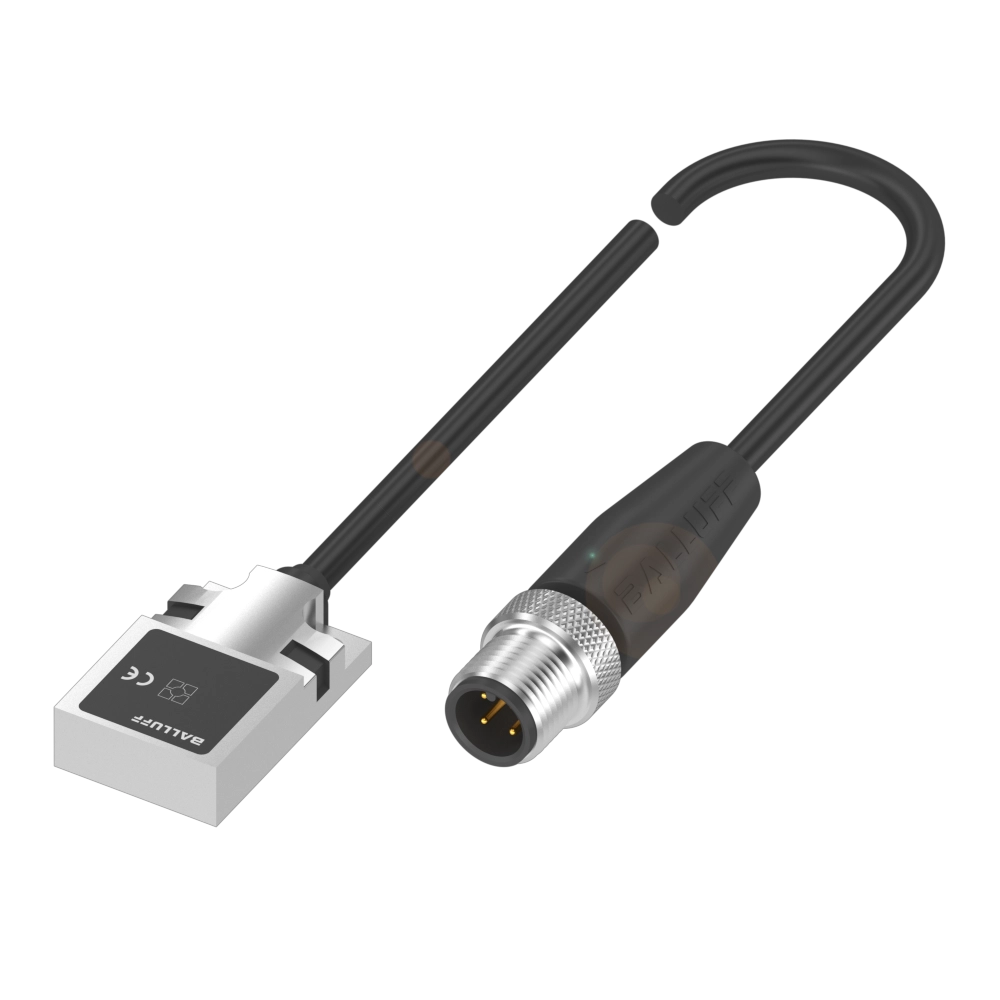

Balluff BIS VM-349-401-S4 (BIS0197): hf rfid readers (13.56 mhz). Housing material: Zinc, Die casting, nickel-plated; Product group: HF (13.56 MHz); Dimension: 20 x 8 x 32 mm.
Technical specifications
| Part number | BIS0197 |
|---|---|
| Full model | BIS VM-349-401-S4 |
| Series | BIS |
| Product group | HF (13.56 MHz) |
| Dimension | 20 x 8 x 32 mm |
| Installation | metal-free (clear zone) on metal flush in metal |
| Antenna type | round |
| Supported data carrier types | DIN ISO 15693 DIN ISO 15693 (High Memory) |
| Connection | Male, 4-pin, 300 mm |
| Housing material | Zinc, Die casting, nickel-plated |
| Ambient temperature | 0…80 °C |
| IP rating | IP67 |
| Interface | RS485 (BIS V connection only) |
| Approval/Conformity | CE UKCA FCC Part 15 IC (Radio) cULus WEEE |
Selection and application
Detection, measurement or communication function specified by the manufacturer. Compare the exact model, electrical interface, mounting and operating environment. Confirm suitability in the actual application.
Documentation
The package includes a bilingual Automation summary and a link to the original Balluff technical source. Numbered notes and operating limits refer to the original source. The manufacturer illustration may differ from the delivered variant.
Quotation
Request a quotation using BIS VM-349-401-S4, part number BIS0197 and quantity. Price, stock and delivery time require confirmation.
