IO-Link valve interface | BNI006J

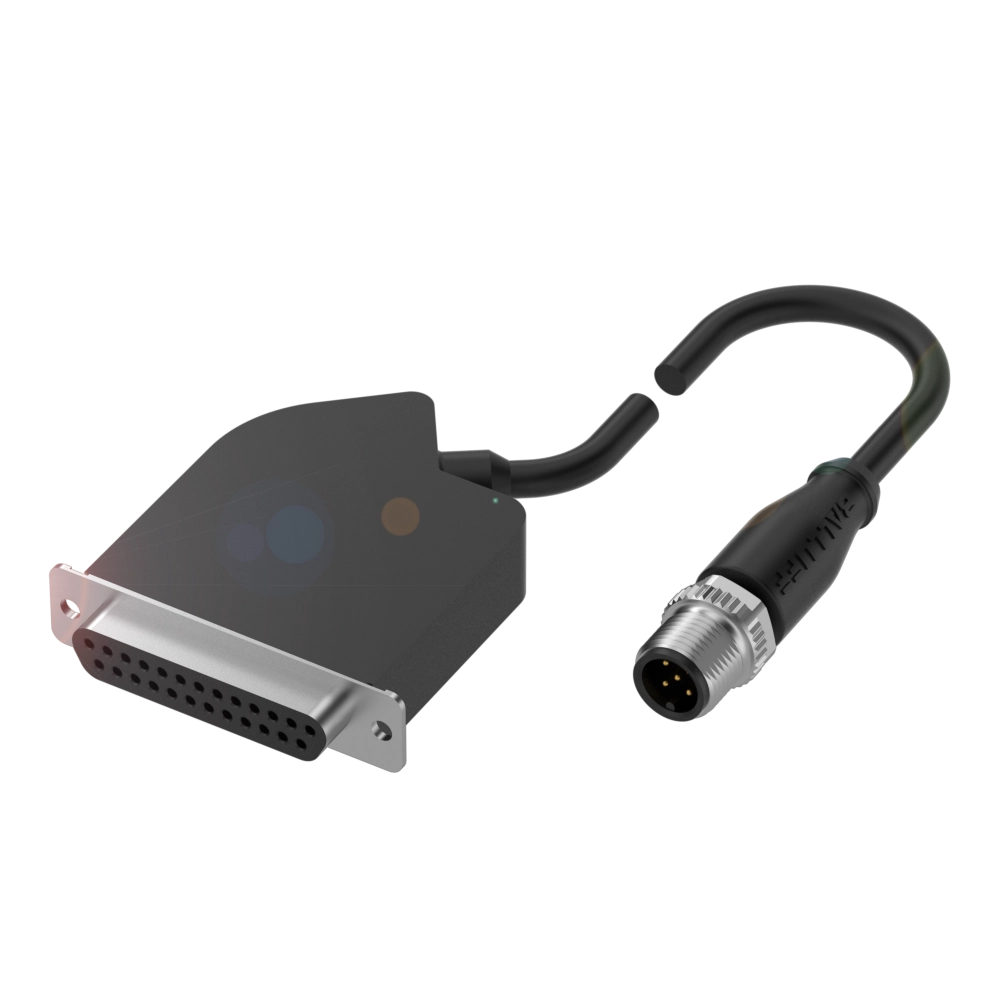

Balluff BNI IOL-750-V08-K007 (BNI006J): io-link valve interface. Housing material: PA; Version: Valve interface; Application: Festo with D-Sub female, 25-pin, GND on Pin 25 Bosch Rexroth LS04 Bürkert Type 8640.
Technical specifications
| Part number | BNI006J |
|---|---|
| Full model | BNI IOL-750-V08-K007 |
| Series | BNI |
| Version | Valve interface |
| Application | Festo with D-Sub female, 25-pin, GND on Pin 25 Bosch Rexroth LS04 Bürkert Type 8640 |
| Interface | IO-Link 1.1 |
| Operating voltage Ub | 18…30.2 VDC |
| Connection (COM 1) | M12x1-Male, 5-pin, A-coded |
| Cable length L | 0.6 m |
| Outputs, number | 24 |
| Current sum UA, actuator | 4 A |
| Function | 3-pin connection Actuator supply on Pin 1 |
| Housing material | PA |
| Dimension | 53 x 61 x 12.5 mm |
| Ambient temperature | -5…55 °C |
| IP rating | IP40, plugged in |
| Transfer rate | COM2 (38.4 kBaud) |
| Process data cycle min. | 3.5 ms |
| Process data OUT | 4 bytes |
Selection and application
Detection, measurement or communication function specified by the manufacturer. Compare the exact model, electrical interface, mounting and operating environment. Confirm suitability in the actual application.
Documentation
The package includes a bilingual Automation summary and a link to the original Balluff technical source. Numbered notes and operating limits refer to the original source. The manufacturer illustration may differ from the delivered variant.
Quotation
Request a quotation using BNI IOL-750-V08-K007, part number BNI006J and quantity. Price, stock and delivery time require confirmation.
