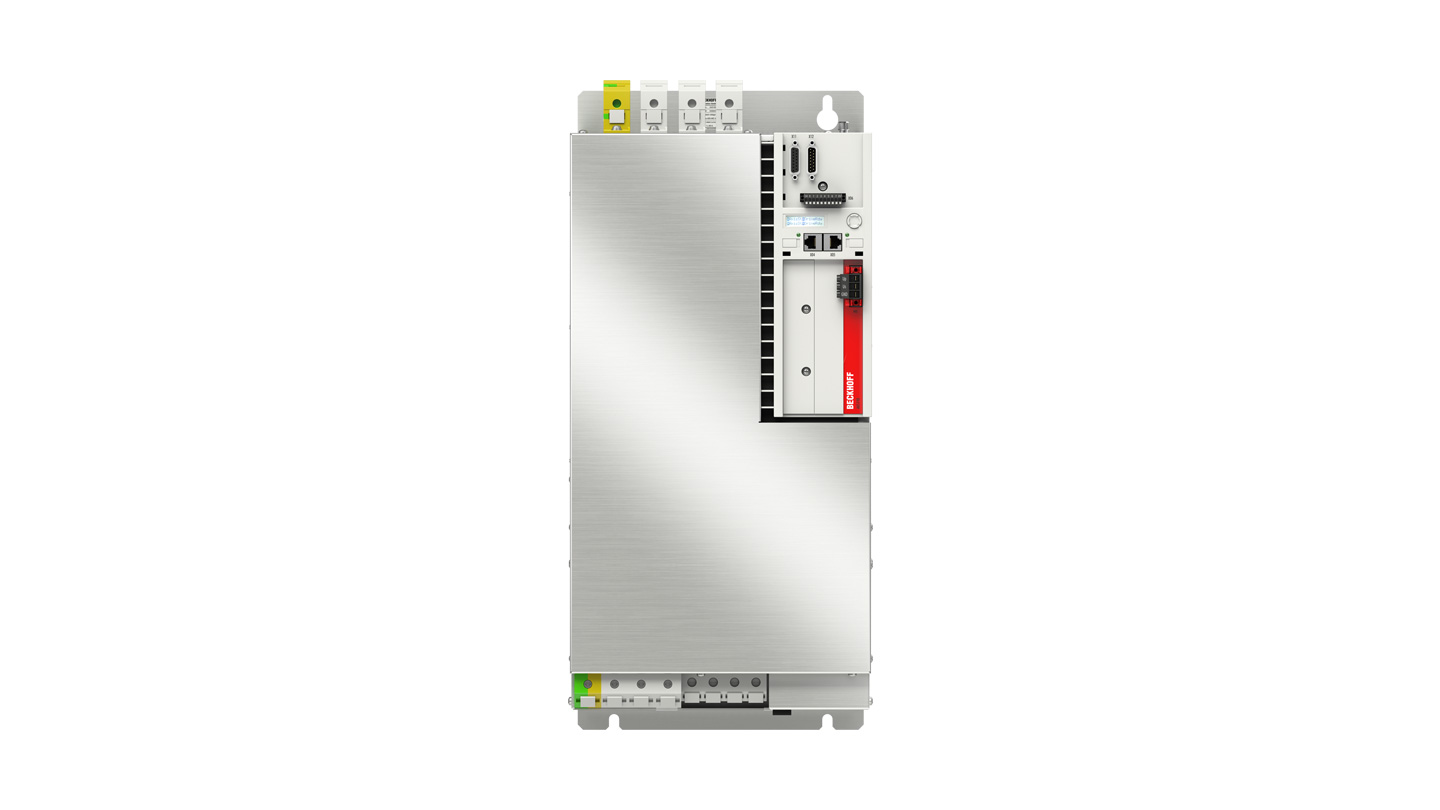

Beckhoff AX5192-0000-0200 - AX5000 Drive

Model / reference
AX5192-0000-0200
Order code
AX5192-0000-0200
Manufacturer
Beckhoff Automation GmbH & Co. KG

Technical data checked: 2026-09-25

Pricing and lead time

The part number is included with your enquiry.

Share product details

Ask about this exact product.

A short message, model code and one product link.

Ask on WhatsApp

The WhatsApp message includes the product name, model and order code. You can copy the full specifications separately if needed. For image sharing, you choose the app and recipient.

Preview WhatsApp message

Hello, please provide pricing and lead time for this product. Product: Beckhoff AX5192-0000-0200 - AX5000 Drive Model: AX5192-0000-0200 Order code: AX5192-0000-0200 Product link: https://automation.com.tr/en/urunler/beckhoff-ax5000-ax5192-0000-0200/

View full product details

View technical documents (2) ↓

Product overview

Beckhoff AX5192-0000-0200 exact-model drive record: 143 A rated / 215 A peak / EtherCAT. Official technical sources, selection, commissioning and maintenance notes.

Read the full product description

Beckhoff AX5192-0000-0200 is an exact-model technical record in the AX5000 family. The manufacturer-verified principal rating is 143 A rated / 215 A peak / EtherCAT with 3 x 400-480 V AC +/-10% supply class.

Applications

Use for machine automation, process lines, pumps/fans, conveyors and compatible motor or servo-axis applications only after matching the actual load profile, motor nameplate, mains and safety requirements.

Selection and commissioning

Confirm exact part number, supply, continuous/peak current, duty class, braking, EMC, communications, safety, cooling and mechanical dimensions against current manufacturer documentation before substitution or commissioning.

Technical specifications

Product data organized into clear specification groups.

Technical data
Technical data
Supply3 x 400-480 V AC +/-10%
Rating143 A rated / 215 A peak / EtherCAT
Technical data
Technical data
ManufacturerBeckhoff Automation GmbH & Co. KG
SeriesAX5000
Exact modelAX5192-0000-0200
Additional specifications
Additional specifications
Supply / Besleme3 x 400-480 V AC +/-10%
Rating / Anma143 A rated / 215 A peak / EtherCAT
Power / Güç99 kVA @ 400 V S1 apparent power
Current / Akım143 A rated / 215 A peak
Channels1
System busEtherCAT
Dimensions540 x 280 x 332 mm (H x W x D)
Ambient0-50 °C
DC linkmax. 875 V DC

Application, selection and use

Open a section to review the details you need.

Applications
  • Motor hız kontrolü

  • Makine otomasyonu

  • Konveyör ve hareket sistemleri

  • Pompa/fan veya proses uygulamaları

Selection criteria
  • Exact manufacturer part number

  • Supply voltage and phase

  • Motor/load power and current

  • Duty/overload class

  • Braking and regeneration

  • EMC and safety

  • Communication and I/O

  • Mechanical dimensions and cooling

Variants / options
  • AX5193-0000-0200

    same-series neighboring reference; verify independently before substitution

  • AX5191-0000-0200

    same-series neighboring reference; verify independently before substitution

Accessories & compatibility
  • Manufacturer-approved operator/communication/braking accessories

    Select only from current manufacturer documentation for this exact series.

Related product references
  • AX5193-0000-0200

    Related same-series reference; not an automatic substitute.

  • AX5191-0000-0200

    Related same-series reference; not an automatic substitute.

Alternative product assessment

Muadil değerlendirmesinde sadece kW eşitliği yeterli değildir. Akım, gerilim, duty, motor kontrol yöntemi, frenleme, I/O, fieldbus, güvenlik, mekanik ölçü ve yazılım davranışı eşleştirilmelidir.

Technical documents

Open data sheets and manufacturer sources. Links open in a new tab.

Frequently asked questions

AX5192-0000-0200 hangi seriye aittir?

AX5192-0000-0200, Beckhoff AX5000 ailesinde exact-model bir sürücü referansıdır.

AX5192-0000-0200 için temel seçim kriteri nedir?

Besleme, motor/yük akımı, duty sınıfı, frenleme, haberleşme, güvenlik ve mekanik uyumluluk güncel üretici dokümanıyla birlikte doğrulanmalıdır.

Muadil sürücü doğrudan takılabilir mi?

Hayır. Model kodu benzer olsa bile elektriksel, mekanik, I/O, haberleşme, güvenlik ve yazılım parametre uyumluluğu ayrı ayrı kontrol edilmelidir.
