For cable diameters of 27–34 mm, LAPP 53111060 is the M50 x 1.5 SKINTOP ST-M solution. Its 55 mm wrench size and 62 mm maximum total length should be allowed for in the mechanical layout. The published five-piece packaging unit helps purchasing planning but does not establish current stock or delivery time.
Application selection
Assess separate support for the cable's weight; do not assume the gland carries the whole route.
Technical specifications
| Model | 53111060 |
|---|---|
| Connection thread | M 50 x 1.5 |
| Cable clamping range (mm) | 27 – 34 |
| Wrench size (mm) | 55 |
| Maximum total length C (mm) | 62.0 |
| Connection thread length (mm) | 12 |
| Packaging quantity | 5 |
| Material | Polyamide, CR seal |
| Colour | Silver grey RAL 7001 |
| Protection; installation dependent | IP66 / IP68 (5 bar, 30 min) / IP69 |
Data apply to the selected code. Final fit, connection and installation must be checked against manufacturer instructions.
Does the packaging quantity guarantee available stock?
No. Packaging is catalogue data; availability, order quantity and delivery must be confirmed in the quotation.
Request a quotation
State cable diameter, support arrangement and required quantity for an M50 ST-M quotation.
Price, stock, cut lengths or quantities and delivery require confirmation.
Compare related articles

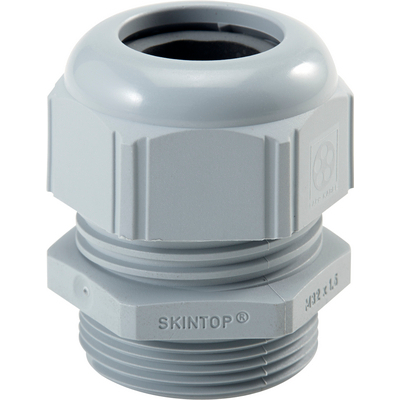

Manufacturer series photograph; size, construction or label may differ from the exact order code.
