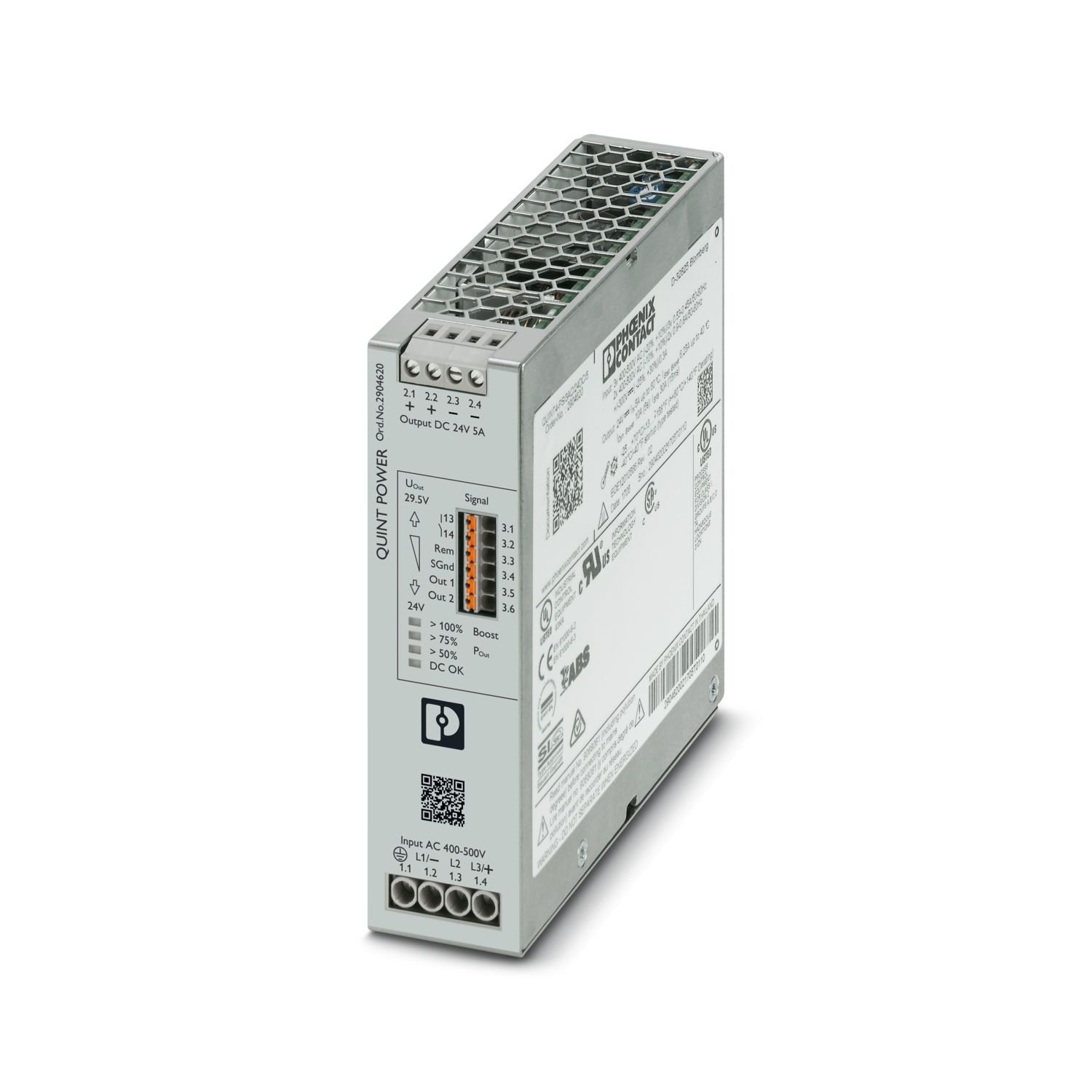

Phoenix Contact QUINT4-PS/3AC/24DC/5 – 2904620 – technical product overview
Fourth-generation QUINT POWER three-phase 24 VDC / 5 A industrial power supply with SFB, static/dynamic boost and NFC-configurable monitoring functions.
Verified technical data
- Giriş: 3x 400…500 VAC; ayrıca 2x 400…500 VAC çalışma verileri üreticide tanımlı
- Nominal çıkış: 24 VDC / 5 A
- Çıkış ayarı: 24…29.5 VDC, constant power
- Statik Boost: 6.25 A
- Dinamik Boost: 10 A / 5 s
- SFB: 30 A / 15 ms
- Nominal çıkış gücü: 120 W
- Verim: tip. 89% @400 VAC; 87.5% @480 VAC
Selection and application
Match signal/electrical ratings, protocol or I/O behavior, mechanical fit, ambient limits and required approvals to the machine design. Validate the exact model with the current manufacturer document before release.
Installation and commissioning
Mount on the specified DIN rail and apply conductor cross-sections, PE connection and cabinet clearances according to Phoenix Contact instructions. Set output voltage and configurable signal/NFC functions to match the machine power budget and protection coordination.
Maintenance and alternative evaluation
During maintenance verify DC output, signaling, temperature/derating conditions and terminal integrity. Do not accept an alternative based on function name alone; independently compare electrical ratings, mechanical dimensions, communication/I/O behavior, environmental limits and any safety/Ex requirements against official data.
Numeric technical data source: manufacturer official exact-model page/document.
