Schneider Electric ATV320 ATV320U22M2C is a compact variable speed drive rated 2.2 kW for heavy-duty use with single-phase 200…240 V supply class, designed for asynchronous and synchronous motor control. The ATV320 family provides an IP20 compact architecture, integrated C2 EMC filter, sensorless flux-vector control, sensorless vector control for synchronous motors, 0.1…599 Hz output frequency, Modbus serial and CANopen communications. Safety functions and optional communication modules must be verified against the exact current model documentation.
Enlarge image

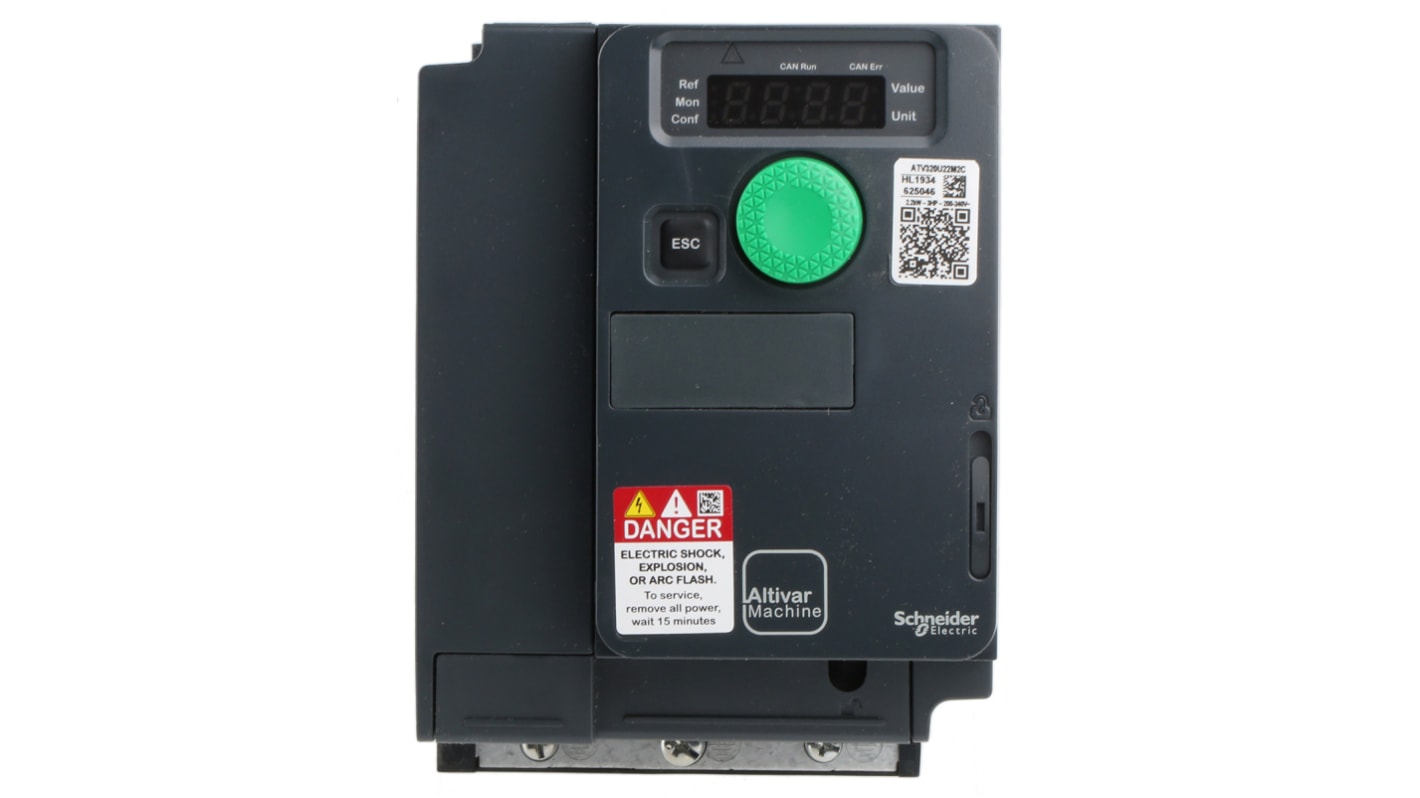

Schneider Electric ATV320U22M2C exact-model teknik tedarikçi ürün sayfasına bağlı fiziksel ATV320 görseli.
Full model and revision are checked before ordering.
Schneider Electric ↗Altivar Machine ATV320
Schneider Electric ATV320 ATV320U22M2C AC Drive - 2.2 kW
Schneider Electric ATV320 ATV320U22M2C is a compact variable speed drive rated 2.2 kW for heavy-duty use with single-phase 200...240 V supply class, designed for asynchronous and synchronous motor control.
- Model / reference
- ATV320U22M2C
- Order code
- ATV320U22M2C
- Manufacturer
- Schneider Electric Industries SAS
Technical data checked: 2026-09-24
Request a current quote.
Pricing, lead time and compatibility review for your quantity and application.
View full product details
Product overview
Product description and scope of use in one place.
Read the full product description
Technical specifications
Product data organized into clear specification groups.
power
| supply | 200...240 VAC (-15...+10%) |
|---|---|
| phases | 1 |
| motor_power_heavy_duty | 2.2 kW |
control
| frequency | 0.1...599 Hz |
|---|---|
| asynchronous | sensorless flux vector |
| synchronous | sensorless vector |
| communication | Modbus serial / CANopen |
| safety | ATV320 integrated safety functions |
mechanical
| type | official_exact_model_datasheet_dimension_reference |
|---|---|
| Exact model code | ATV320U22M2C |
| official_datasheet | https://iportal.se.com/Contents/docs/SQD-ATV320U22M2C_DATASHEET.PDF |
| official_installation_manual | https://www.se.com/tr/tr/download/document/NVE41289TR/ |
| cad_reference | Use the exact-model Dimensions Drawings/CAD section from Schneider Electric before panel mechanical release. |
| verification | Structured official CAD/dimension reference used; no unsupported dimension is invented. |
environment
| degree_of_protection | IP20 |
|---|---|
| relative_humidity | 5...95% without condensation/dripping water (ATV320 platform documentation) |
| operating_temperature | -10...50 °C without derating; up to 60 °C subject to mounting/derating rules |
| storage_temperature | -25...70 °C |
| environmental_classes | Chemical 3C3 / dust 3S2 per IEC 60721-3-3 platform documentation |
| source | https://iportal.se.com/Contents/docs/SQD-ATV320U22M2C_DATASHEET.PDF |
| installation_manual | https://www.se.com/tr/tr/download/document/NVE41289TR/ |
Additional specifications
| network_phases | 1 phase |
|---|---|
| rated_supply_voltage | 200...240 VAC (-15...+10%) |
| supply_frequency | 50...60 Hz (-5...+5%) |
| product_format | Compact |
| emc_filter | Integrated Class C2 EMC filter |
| motor_types | Asynchronous and synchronous motors |
| asynchronous_control | V/f profiles; sensorless flux vector control |
| synchronous_control | Sensorless vector control |
| output_frequency | 0.1...599 Hz |
| nominal_switching_frequency | 4 kHz |
| adjustable_switching_frequency | 2...16 kHz (derating may apply) |
| standard_communication | Modbus serial; CANopen |
| safety_functions | STO plus ATV320 integrated safety function set per exact current datasheet |
No specifications match. Try another term or clear the search.
Application, selection and use
Open a section to review the details you need.
Applications
AC motor hız kontrolü
Konveyör ve makine eksenleri
Fan ve pompa uygulamaları
Paketleme ve malzeme taşıma makineleri
CNC yardımcı tahrik uygulamaları
Kaldırma, paketleme ve malzeme işleme makineleri
Selection criteria
Confirm exact model ATV320U22M2C, 1-phase supply and 2.2 kW heavy-duty motor rating.
Verify motor rated current and actual torque/overload duty from the exact datasheet.
Confirm asynchronous/synchronous motor type and selected control profile.
Verify integrated safety, braking, I/O and required optional communication module.
Use current Schneider exact-model drawing and installation manual for clearances, derating and EMC.
Installation notes
Şebeke gerilimi, faz sayısı ve motor etiket değerleri exact model ile doğrulanmadan enerji vermeyin.
Enerji izolasyonu ve LOTO prosedürü uygulanmadan güç terminallerine müdahale etmeyin.
Pano hava akışı, montaj açıklıkları, topraklama ve EMC kablo güzergahlarını güncel üretici kılavuzuna göre uygulayın.
Motor, güç ve kontrol kablolarını üreticinin ekranlama/ayırma kurallarına göre döşeyin.
Commissioning
Motor etiket verilerini eksiksiz girin ve seçilen kontrol moduna uygun motor tanıma/tuning prosedürünü uygulayın.
İlk çalıştırmayı mekanik sistem güvenli durumdayken düşük hız ve kontrollü rampa ile gerçekleştirin.
Motor yönü, akım, frenleme, stop fonksiyonları, interlock ve varsa STO güvenlik zincirini kontrollü test edin.
Devreye alma tamamlandığında parametre yedeğini saklayın.
Maintenance / service
Pano filtreleri, soğutma kanalları, fanlar ve güç terminallerini planlı bakımda kontrol edin.
Alarm geçmişi ve yük eğilimini inceleyin; tekrarlayan aşırı akım, DC bara veya sıcaklık hatalarının kök nedenini araştırın.
Sürücü veya parametre değişiminden sonra motor yönü, limitler, interlocklar ve güvenlik fonksiyonlarını yeniden doğrulayın.
Variants / options
ATV320U22M2C exact reference
Other ATV320 voltage/power/form-factor variants require separate exact-model verification
Accessories & compatibility
Schneider ATV320 communication module selected for the required protocol
Manufacturer-approved braking resistor sized to exact application
Line/motor choke or additional EMC filter where required
SoMove/DTM commissioning tools and approved operator/accessory options
Related product references
Schneider Electric Altivar ATV320 family
Schneider Electric Altivar ATV340
Schneider Electric Altivar Process drives
Alternative product assessment
ATV320 muadilinde yalnız kW eşitliği yeterli değildir. Faz/besleme, exact motor akımı, kompakt/kitap tipi gövde, EMC, güvenlik fonksiyonları, haberleşme, frenleme ve montaj geometrisi birlikte karşılaştırılmalıdır.
Technical documents
Open data sheets and manufacturer sources. Links open in a new tab.
Frequently asked questions
Schneider ATV320 ATV320U22M2C motor gücü nedir?
Schneider exact ürün kaydında ağır hizmet motor gücü 2.2 kW olarak yayınlanır.
ATV320U22M2C hangi besleme sınıfını kullanır?
1 faz, 200...240 VAC (-15...+10%) sınıfındadır.
ATV320U22M2C başka bir ATV320 ile doğrudan değiştirilebilir mi?
Hayır. Besleme/faz, motor gücü-akımı, gövde, EMC, güvenlik, haberleşme, I/O ve frenleme gereksinimleri exact model dokümanıyla doğrulanmalıdır.
Related industries & technical tags
Technical verification note
Before ordering, confirm application suitability, safety functions, connections and revision differences against the exact product code and manufacturer documentation.
