TG-T12-30 addresses PrimaTEQ TW46 projects retaining a 2×2 + 0x2 joystick arrangement on 915 MHz. Frequency options can share a housing, so photographs are not an ordering basis. Assess the receiver's full reference together with operator functions.
Application selection
Document joystick directions and function assignments in the existing 915 MHz system.
Technical specifications
| Model | TG-T12-30 |
|---|---|
| Frequency | 915 MHz |
| Duplex communication | Yes |
| Battery arrangement | Rechargeable / replaceable |
| Battery type | li-ion |
| Number of batteries | 1 |
| Button arrangement | 4 x 1-step |
| Joystick arrangement | 2×2 + 0x2 |
| Protection rating | IP65 |
| Weight | 1200 g |
| Dimensions (W x H x D) | 210 x 140 x 130 mm |
| Operating temperature | -20 / +55 °C |
| Maximum receivers | 15 |
Technical values follow the official model record. Confirm supply options and system compatibility when ordering.
Can its 433 MHz sibling be identified from the picture alone?
A shared manufacturer image does not verify the radio label; use the complete code and unit label.
Request a quotation
Send the receiver code and joystick map for a technical TG-T12-30 offer.
Confirm price, stock, configuration and delivery before ordering.
Compare related references

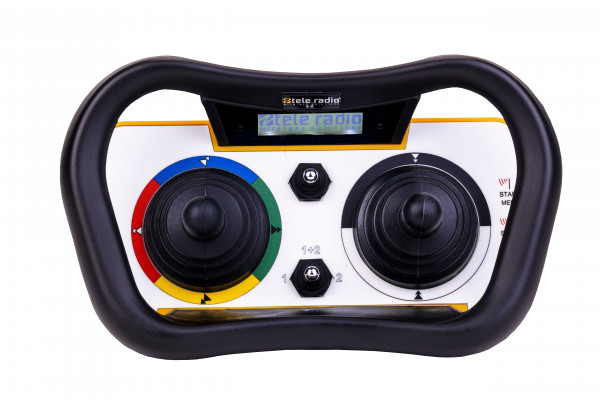

Manufacturer image assigned to TG-T12-30; illustrative. Verify frequency label and delivered configuration separately.
