Technical description and application scope

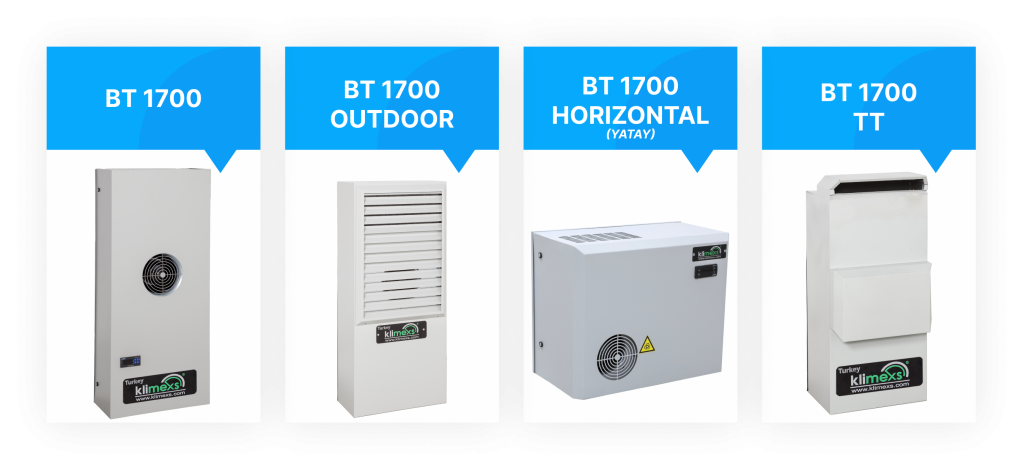

Klimexs BT 1700 OD is the outdoor variant for high-heat-load CNC and industrial control cabinets, rated at 1790 W DIN 3168 L35/L35 with IP65 internal-circuit and IP54 external-circuit protection published by the manufacturer. The current manufacturer table lists 1112 W at L35/L65, 4.6 A operating current, 25 A fuse, 680 W L35/L35 power input, 540 m³/h evaporator and 945 m³/h condenser maximum airflow, R134a refrigerant, 70 dBA sound level, 35 °C thermostat setting and EER 2.48. For the outdoor variant, airflow openings, water exposure direction, service clearance and panel cut-out must be checked against the manufacturer drawing. Application selection should consider enclosure heat load, ambient temperature, supply, mounting orientation and required protection level together.
