Technical description and application scope
Application and selection
Leuze RSL230-S/12-M12, article 53802107, is a safety laser scanner. Selected exact-model data: protective field range: 0–3 m; scanning angle: 275°; resolution: 50 / 70 mm, adjustable.
Protective and warning fields do not provide the same safety function. Warning range must not be used as a substitute for protective-field range. A competent person must determine field geometry using the approach conditions, total machine stopping time and selected resolution. Device safety ratings do not establish the validated performance of the complete machine.
Selected exact-model data
| Protective field range | 0–3 m |
|---|---|
| Scanning angle | 275° |
| Resolution | 50 / 70 mm, adjustable |
| Selectable field triplets | 32 |
| Supply voltage | 24 VDC, −30% / +20% |
| Response time | ≥75 ms |
| Device safety classification | Type 3; SIL 2; SILCL 2; PL d; category 3 |
| Dimensions | 80 × 80 × 86 mm |
| Operating temperature | 0…+50 °C |
| Degree of protection | IP65 |
Engineering integration
Use article number 53802107 together with the complete designation RSL230-S/12-M12 when selecting a replacement, checking a quotation or requesting technical support. Compare the actual installation space, power supply and controller requirements before purchase. A matching housing or a similar model suffix does not prove interchangeability.
Before commissioning, define an acceptance test with representative operating conditions. Record the configuration, reference samples and controller response. Repeat the relevant test after mechanical adjustment, wiring changes or replacement. Safety devices require validation of the complete protective function by competent personnel; ordinary sensing devices must not be assigned an unverified protective function.
Source and limitations
Technical values were checked against the manufacturer page for article 53802107 on 2026-09-26. This independently written summary is not a manufacturer installation manual. Missing values, accessory compatibility and lifecycle status are not inferred from neighbouring variants. Consult the current exact-model documentation before final engineering release.
About the product image

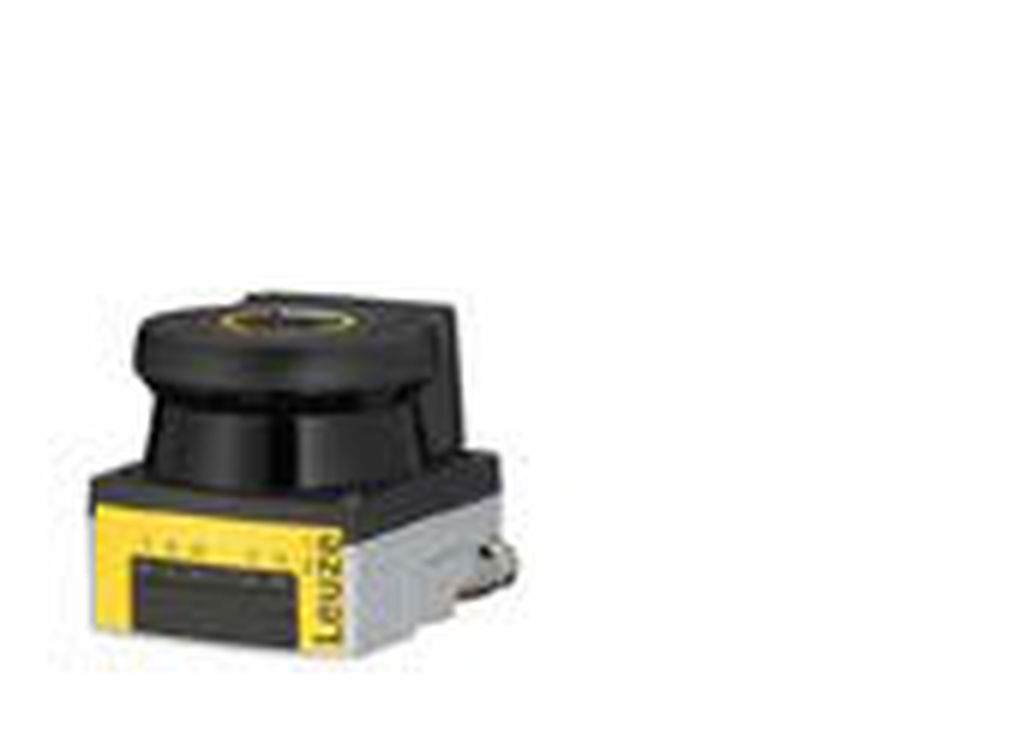

Manufacturer catalogue illustration of the RSL 230 / 235 family, not an independently verified exact-model photograph. The catalogue bitmap is 170 × 122 pixels. Shared or multi-unit family images do not define the delivery scope.
