Technical description and application scope

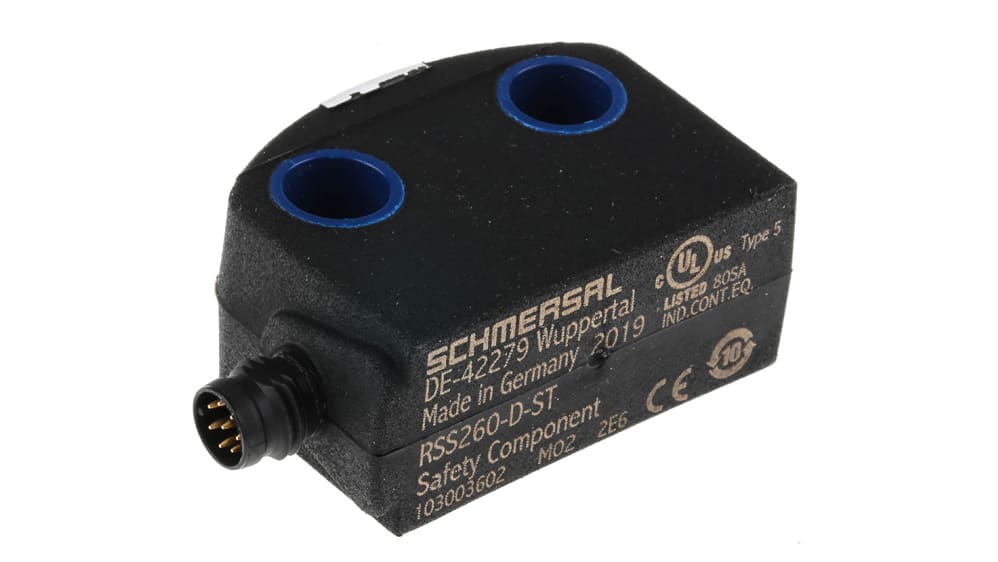

Schmersal RSS260-D-ST (103003602) is an exact-model industrial product for rfid-coded non-contact safety sensor applications. This record uses only values verified on the manufacturer’s current official product page or official exact-model technical documentation. It contains no claims about price, stock, delivery time, warranty, distributorship or authorized partnership.
Key technical specifications
- Operating principle: RFID, 125 kHz
- Coding: Universal coding
- Connection: M8, 8-pole
- Safety outputs: 2 dijital güvenli yarı iletken çıkış
- Diagnostic output: 1 yarı iletken çıkış
- LED: 3
- Response time: max. 100 ms
- Risk time: max. 200 ms
- Safety level: PL e / Category 4 / SIL 3
- Typical switching distance: 12 mm frontal; 9 mm lateral
Typical applications
Koruyucu kapı izleme, Temassız emniyet pozisyon algılama, Seri bağlı emniyet sensörleri.
Selection and integration
Verify signal and electrical ratings, communication or I/O architecture, mechanical mounting, environmental limits and controller compatibility together. Product-family similarity or appearance alone is not sufficient for substitution.
Installation and commissioning
Isolation, wiring, shielding and grounding, addressing, scaling and parameterization must follow the current manufacturer documentation. During commissioning, verify supply, diagnostics, I/O behavior and the complete functional test.
Maintenance and replacement
Periodic inspection should cover connectors, mounting, cables, environmental exposure and functional verification. Safety-related products require the applicable validation and proof-test procedures.
