Technical description and application scope

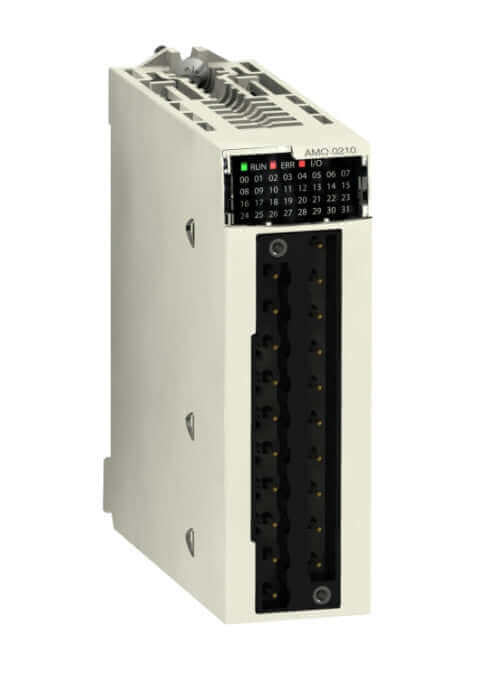

Schneider Electric BMXAMO0210 (BMXAMO0210) is an exact-model industrial product for 2-channel isolated high-level analog output module applications. This record uses only values verified on the manufacturer’s current official product page or official exact-model technical documentation. It contains no claims about price, stock, delivery time, warranty, distributorship or authorized partnership.
Key technical specifications
- Analog outputs: 2
- Channel isolation: İzole
- Current outputs: 0…20 mA, 4…20 mA
- Voltage output: ±10 V
- Resolution: 15 bit + sign (product data); user guide specifies 16-bit for ±10 V and 15-bit current ranges
- Connection: 20-way connector
- Fallback mode: Predefined / configurable
- Protection rating: IP20
- Typical 24 V power consumption: 2.1 W
- Maximum 24 V power consumption: 2.8 W
Typical applications
4-20 mA actuator setpoint, 0-20 mA analog çıkış, ±10 V analog komut.
Selection and integration
Verify signal and electrical ratings, communication or I/O architecture, mechanical mounting, environmental limits and controller compatibility together. Product-family similarity or appearance alone is not sufficient for substitution.
Installation and commissioning
Isolation, wiring, shielding and grounding, addressing, scaling and parameterization must follow the current manufacturer documentation. During commissioning, verify supply, diagnostics, I/O behavior and the complete functional test.
Maintenance and replacement
Periodic inspection should cover connectors, mounting, cables, environmental exposure and functional verification. Safety-related products require the applicable validation and proof-test procedures.
