ACS180-04S-02A4-1 offers 0.37 kW nominal power for small machines on single-phase 230 V input. Its 70 mm-wide R0 frame gives a concrete cabinet-planning reference. Match the 2.4 A nominal current to motor data when sizing a small variable-speed drive.
Selection for your application
Check motor connection voltage and current against the 2.4 A nominal rating.
Technical specifications
| Model | ACS180-04S-02A4-1 |
|---|---|
| ABB ordering code | 3AXD50000716562 |
| Nominal supply | 230 V AC, 1 phase |
| Nominal motor power Pn | 0.37 kW |
| Nominal output current In | 2.4 A |
| Frame | R0 |
| Ingress protection | IP20 |
| Width x height x depth | 70 mm x 209 mm x 143 mm |
Pn/In are nominal ratings. Assess heavy-duty capacity and ambient conditions separately.
Is nominal power the same as heavy-duty power?
They are separate ratings; the application's duty class requires its own assessment.
Request a quotation
Request 02A4-1 pricing with your small-machine motor data.
Confirm price, stock and lead time for the selected model.

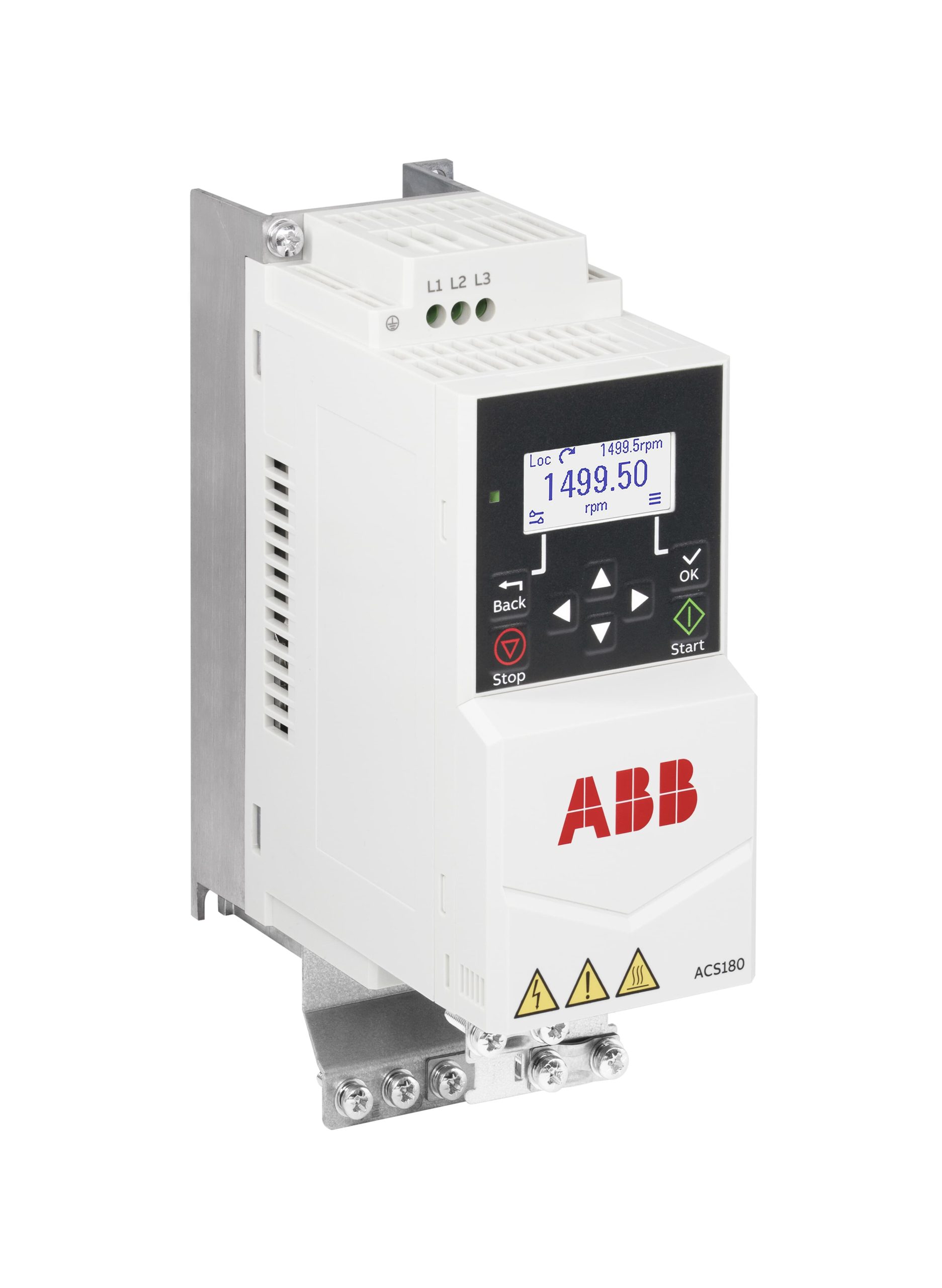

Official manufacturer family/representative visual; not an exact dimensional or nameplate photograph.
