LAPP 21700124 provides the ETHERLINE ACCESS U08T-2GEN option for cabinets needing eight Fast Ethernet connections. The model document identifies eight 10/100 Mbit/s RJ45 ports in an unmanaged switch. Compared with the five-port version, the additional connections allow a more deliberate allocation of current and reserved network points.
Application selection
List active devices, the uplink and spare connections to check whether eight ports are sufficient.
Technical specifications
| Model | 21700124 |
|---|---|
| RJ45 port count | 8 |
| Port speed | 10/100 Mbit/s |
| Management | Unmanaged |
| Power supply | 24 VAC/VDC nominal; 18–30 VAC, 12–48 VDC |
| Protection rating | IP30 |
| Operating temperature | -10…+60 °C |
| Maximum power consumption | 4.6 W |
Data apply to the selected code. Final fit, connection and installation must be checked against manufacturer instructions.
Model-linked DB datasheet values take precedence over the family page statements for port speed and DC supply.
Do all eight ports support 1 Gbit/s?
This reference has 10/100 Mbit/s ports. A separate model such as U08GT should be assessed where Gigabit is required.
Request a quotation
Share your existing and planned network endpoints for a capacity-based U08T-2GEN quotation.
Price, stock, cut lengths or quantities and delivery require confirmation.
Compare related articles

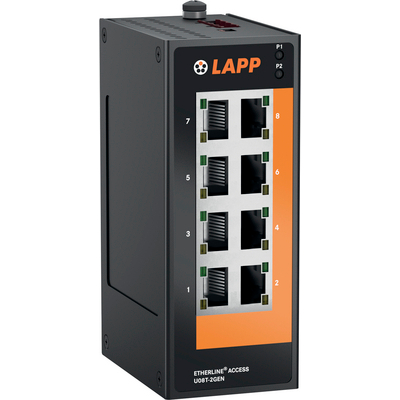

Manufacturer series photograph; size, construction or label may differ from the exact order code.
