LAPP 21700129 identifies ETHERLINE ACCESS U08GT, offering eight RJ45 ports with 10/100/1000 Mbit/s support. Its unmanaged architecture must be considered against the network's management requirements; port count alone does not provide VLAN configuration or monitoring features. This reference differs in speed capability from U08T-2GEN.
Application selection
Define Gigabit-compatible four-pair cabling, supply conditions and required network-management functions before ordering.
Technical specifications
| Model | 21700129 |
|---|---|
| RJ45 port count | 8 |
| Port speed | 10/100/1000 Mbit/s |
| Management | Unmanaged |
| Power supply | 24 VAC/VDC nominal; 18–30 VAC, 12–48 VDC |
| Protection rating | IP30 |
| Operating temperature | -10…+60 °C |
| Maximum power consumption | 10 W |
Data apply to the selected code. Final fit, connection and installation must be checked against manufacturer instructions.
Model-linked DB datasheet values take precedence over the family page statements for port speed and DC supply.
Can U08GT be treated as a managed switch?
The manufacturer classifies it as unmanaged; management functions must not be assumed.
Request a quotation
Specify the Gigabit endpoints and available cabinet space for a U08GT hardware quotation.
Price, stock, cut lengths or quantities and delivery require confirmation.
Compare related articles

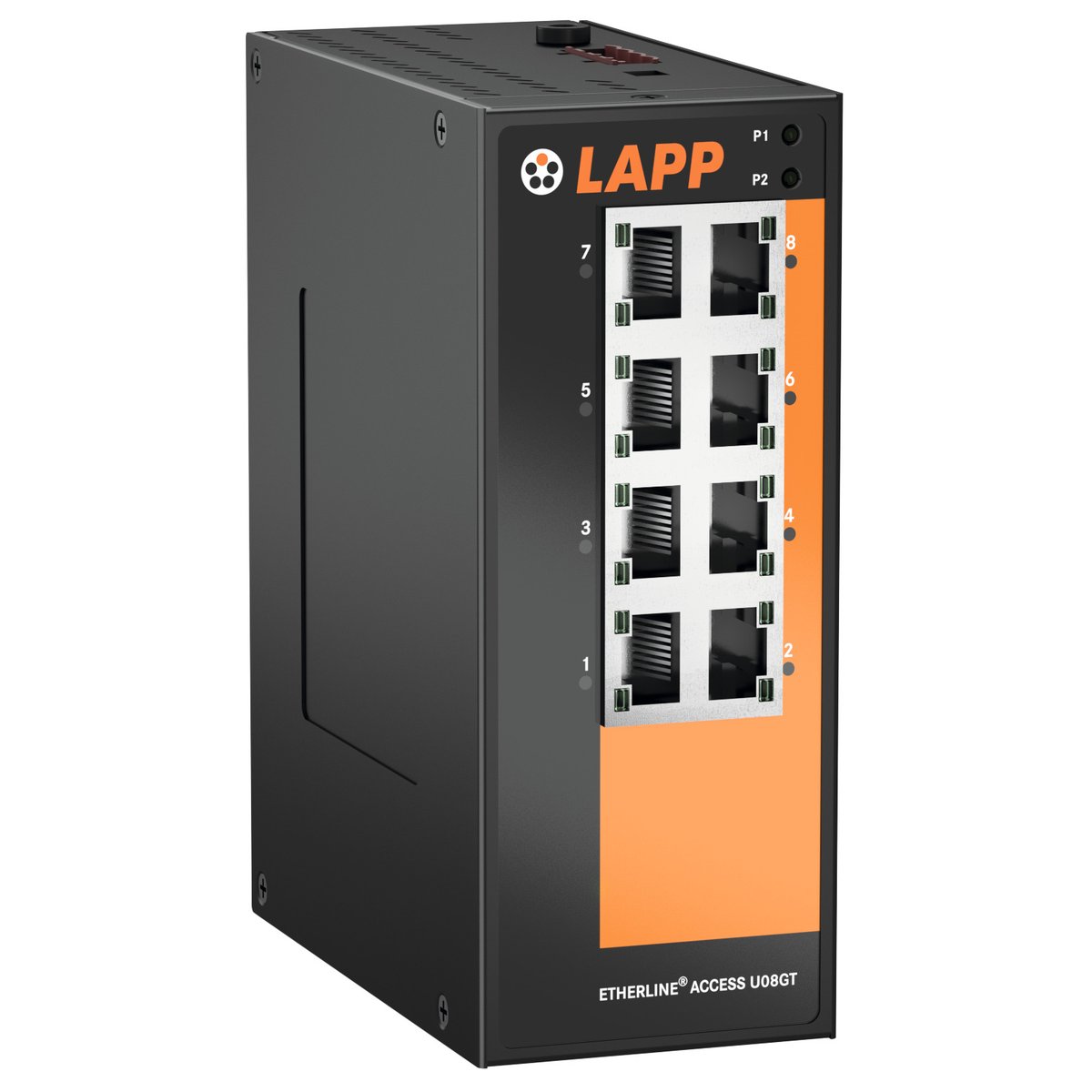

Representative photograph assigned to the manufacturer model record; no separate nameplate verified.
