Inductive Proximity Sensor | 50154026
Leuze IS D30MM/4NO-30N-M12 (50154026) provides 30 mm nominal sensing distance, a PNP switching output and M12, 4-pin male, A-coded. Supply: 10–30 V DC; protection: IP67.
This is a PNP Normally open (NO) device. Other M30 devices with different output polarity or switching function are not automatic drop-in replacements.
Technical specifications
| Part number | 50154026 |
|---|---|
| Exact model | IS D30MM/4NO-30N-M12 |
| Series | D30 |
| Supply voltage | 10–30 V DC |
| Output | PNP / Normally open (NO) |
| Connection | M12, 4-pin male, A-coded |
| Switching frequency | 100 Hz |
| Housing dimensions | Ø30 × 80 mm |
| Operating temperature | −25…+70 °C |
| Protection rating | IP67 |
| Nominal distance Sn | 30 mm |
| Operating range Sa | 0–24.3 mm |
| Installation | Non-flush |
| Housing thread | M30 × 1.5 |
| Maximum output current | 200 mA |
Application selection
Metal target detection, Machine position monitoring, Assembly fixture presence checks. Suitability must be confirmed using the actual target and machine conditions.
- Match the PNP / Normally open (NO) function to the PLC input.
- Use the 0–24.3 mm assured operating range rather than the nominal 30 mm rating for mechanical selection.
- Respect the manufacturer’s flush or non-flush mounting clearances.
- Test the actual metal target material, dimensions and position.
Installation and commissioning
Qualified personnel should install and wire the sensor with the machine in a safe, de-energized condition. Verify the exact label, supply voltage, connector pin assignment and PLC input before energizing. Test both target-present and target-absent states at the required production speed.
Maintenance and ordering
Inspect mounting, connector condition and the sensing surface regularly. Clean using an appropriate non-damaging method and repeat the functional test. This device is not a personnel-protection safety sensor. Specify the exact model and manufacturer part number when ordering; price, stock, lead time and included accessories require a separate quotation.

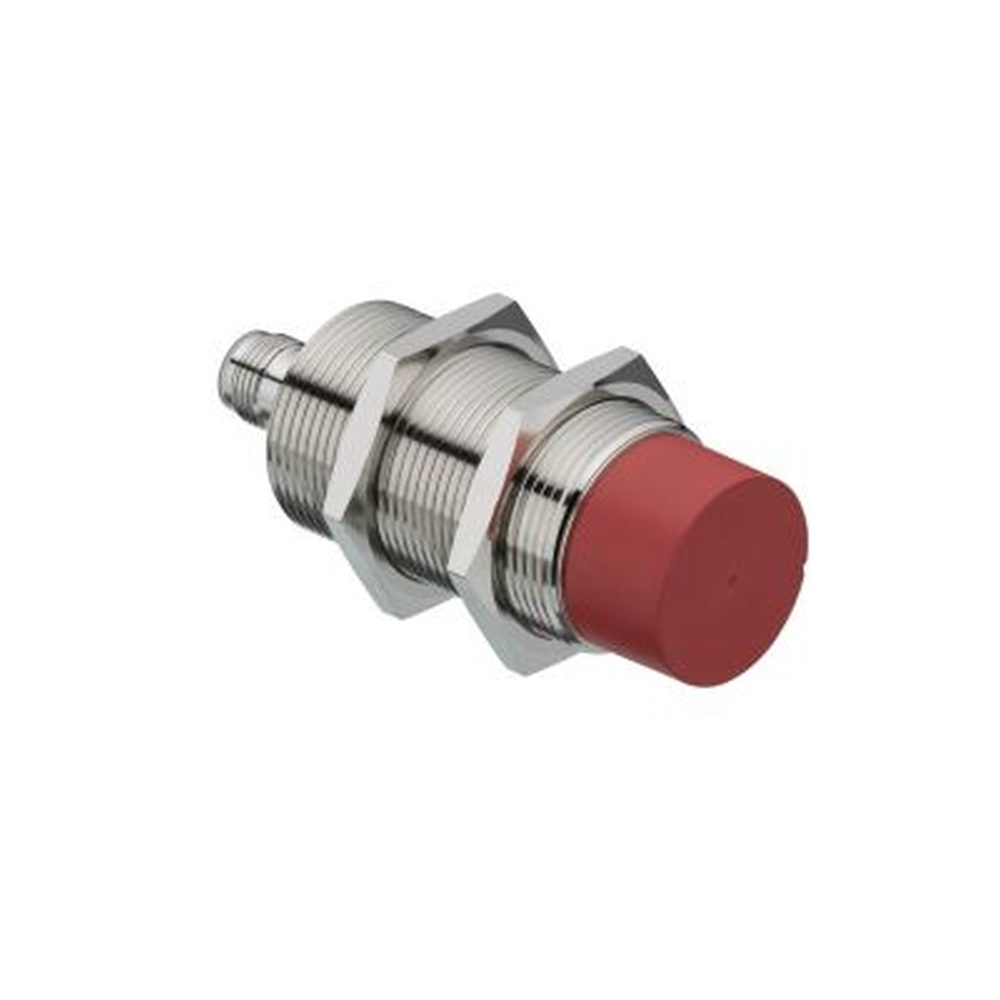

Genuine Leuze series illustration. Output variant, pin count and connector details may differ; the exact part number and technical table govern selection.
Source: Leuze official record 50154026. Reviewed: 2026-10-04.
